Tube Making Machine
  • Tube Making Machine
Tube Making Machine

Tube Making Machine

    Applications

    Production process

    1. Printed web→2. Tube Manufacturing Machine→3. Tube Heading Machine→4. Tube Foil Sealing & Capping machine



Inquire Now
  • Features & Parameters

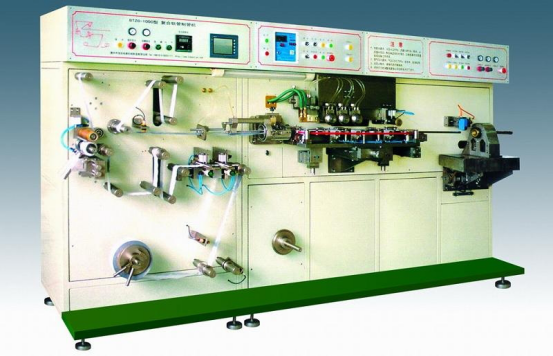

    1. Laminated Tubes Making Machine



    It is a tube making machine, designed for making aluminum-plastic laminated tubes (ABL). It is controlled by PLC with man-machine interaction screen. It has stable function and easy adjustment. It has good performance in welding laminated soft tubes. The side cracks of tubes can be welded firmly and smoothly. It can cover the outer aluminum foil while welding aluminum-plastic laminated soft tubes. It can keep the filling products in good quality for a long time. It is widely used in packing soft tubes for products like creams, toothpaste, food, medicine and cosmetics etc. This machine can work with semi-automatic injection molding machine to form a complete tube production line.


    Main technical parameters

    Power supply: 220VAC/50Hz

    Power: 9KW

    ABL production speed: 10-15m/min

    Tube Diameter: 12.7-50 mm (ABL)

    Tube Length: 25 -300 mm

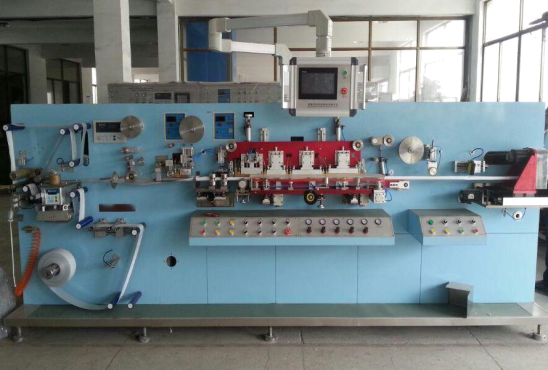

    2. Laminated Tubes Making Machine


    This machine can not only produce aluminum-plastic laminated tubes (ABL), but also plastic tubes (PBL). It firstly solved the domestic problem of plastic laminated tubes- low production efficiency and question of aluminum-plastic laminated tubes- low quality. The production speed of aluminum-plastic tubes is highly improved. The machine can work with semi-automatic injection molding machine to form a complete tube making production line.


    Main technical parameters

    Power supply: 220VAC/50Hz

    Power: 10KW

    ABL production speed: 12-16m/min

    PBL production speed: 8-10m/min

    Tube Diameter: 12.7-50mm (ABL)

    16-50 mm (PBL)

    Tube Length: 25 -300 mm

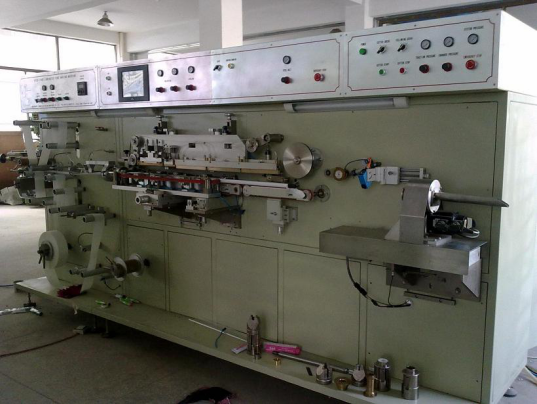

    3. Laminated Tubes Making Machine


    This machine can produce both aluminum-plastic laminated tubes (ABL) and plastic tubes (PBL). It has a big change in welding and operating, so this machine is very easy to adjust and control. It use double steel belt, one is for outside heating and the other is for inner heating. Thus the product quality is significantly improved in the high speed production. It can work with semi-automatic injection molding machine to form a complete tube making production line.


    Main technical parameters

    Power supply: 380VAC/50Hz

    Power: 12KW

    ABL production speed: 12-18m/min

    PBL production speed: 8-12m/min

    Tube Diameter: 12.7-50mm (ABL)

    16-50mm (PBL)

    Tube Length: 25 -300 mm

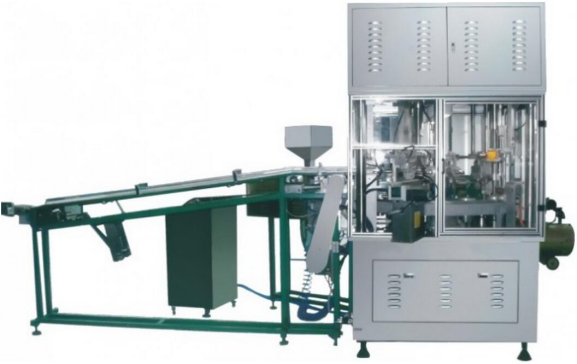

    4. Automatic Tube Heading Machine



    The main technology of automatic tube heading machine is related with the automatic shoulder injection machine. It is mainly applied for the shoulder injection of laminated tubes and plastic tubes. It is controlled by PLC with big man-machine interaction screen. The machine integrates technology of machinery, electron and pneumatics. It features high production, low consumption, easy operation, automatic fault display, stable function and no waste. By injecting, spitting, squeezing and welding, it can make shoulders for plastic tubes and laminated tubes. The shoulder appears smooth, beautiful and firm.


    Main technical parameters

    Power Supply

    380V/50Hz

    Power

    13kW

    Air Pressure

    ≥6Pa

    Air Consumption

    ≥0.5m³

    Dimensions

    3330mm×2250mm×3400mm

    Tube Diameter

    Φ19-Φ50㎜

    Tube Length

    80-200mm

    Productivity

    ≥55pcs/min

    Weight

    4500kg

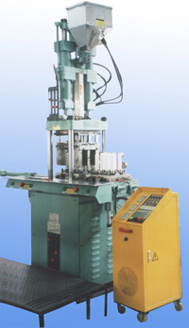

    5. Tube Heading machine



    1. This machine adopts the method of screw preplastication, hydraulic mould closure and dual mode shape. Shoulders are smooth, beautiful and firm.

    2. It is equipped with automatic tube-out device, which can ease worker’s intensity and increase the working efficiency.


    Main technical parameters

    Power Supply

    3x380VAC/50HZ

    Power of the Machine:

    9-12KW

    Productivity

    25-35pcs/min

    Dimension:

    2600 x 1700 x 2800 mm

    Weight

    1500Kg

    Tube Diameter

    11-35mm
    11-50mm

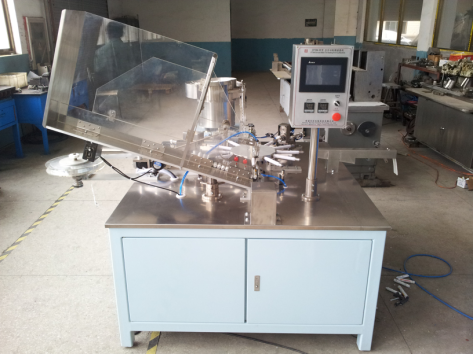

    6. Laminated Tubes Foil sealing & Capping Machine


    1. This equipment is suitable for sealed tubes. It can seal tubes’ head with aluminum foil and cap tubes. These two functions are both included.

    2. It is of high automation. It can put on tubes, seal tubes and take off tubes automatically. Controlling part adopts PLC system which makes sure the machine runs smoothly and stably.


    Main technical parameters

    Power supply

    220VAC/50Hz

    Power

    2.5KW

    Air Exhaustion

    0.35m³/min

    Air supply

    0.6Mpa

    Tube Diameter

    16-50mm

    Production Ability

    45-50 pcs/min

    undefinedp  Size

    1500x2000x1700 mm

     Weight

    1100kg

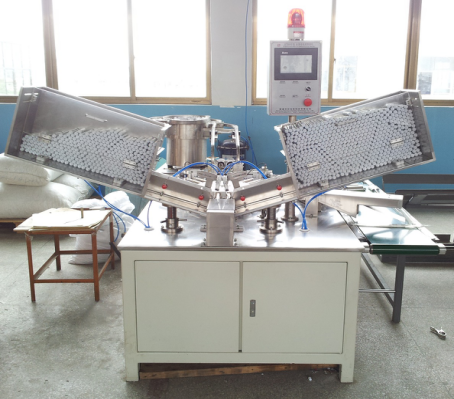

    7. Double Head Automatic Foil Sealing & Capping Machine



    1. This equipment has two nozzles. This equipment is suitable for sealed tubes. It can seal tubes’ head with aluminum foil and cap tubes. These two functions are both included.

    2. It is of high automation. It can put on tubes, seal tubes and take off tubes automatically. Controlling part adopts PLC system which makes sure the machine runs smoothly and stably.


    Main technical parameters

    Power supply

    220VAC/50Hz

    Power

    4KW

    Air Exhaustion

    0.35m³/min

    Air supply

    0.6Mpa

    Tube Diameter

    16-40mm

    Production Ability

    90-100 pcs/min

    Size

    1500x2000x1700 mm

    Weight

    1300kg
