GHC01 Lacquer Curing Oven (Gas)
  • GHC01 Lacquer Curing Oven (Gas)
  • GHC01 Lacquer Curing Oven (Gas)
  • GHC01 Lacquer Curing Oven (Gas)
GHC01 Lacquer Curing Oven (Gas) GHC01 Lacquer Curing Oven (Gas) GHC01 Lacquer Curing Oven (Gas)

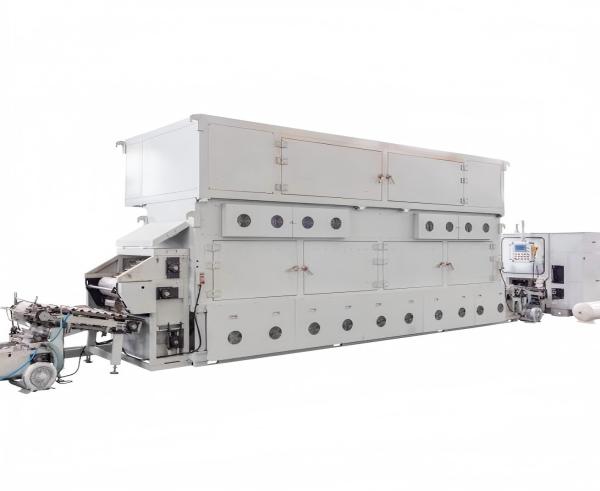

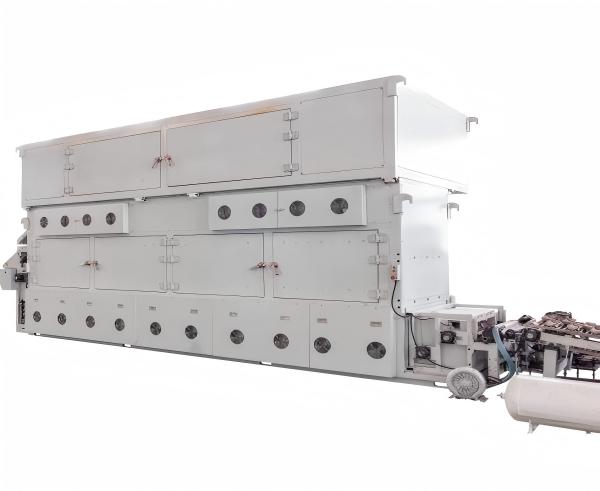

GHC01 Lacquer Curing Oven (Gas)

    GHC01 lacquer curing oven which is used to solidify cans after internal lacquering is supporting equipment for aluminum can production line. It is the necessary equipment for all production lines with internal lacquering machines. The machine is equipped with a single drive motor. It can operate synchronously with the equipment before and after or operate separately.

Inquire Now
  • Application and operating principle
  • Main technical parameters
  • Main features

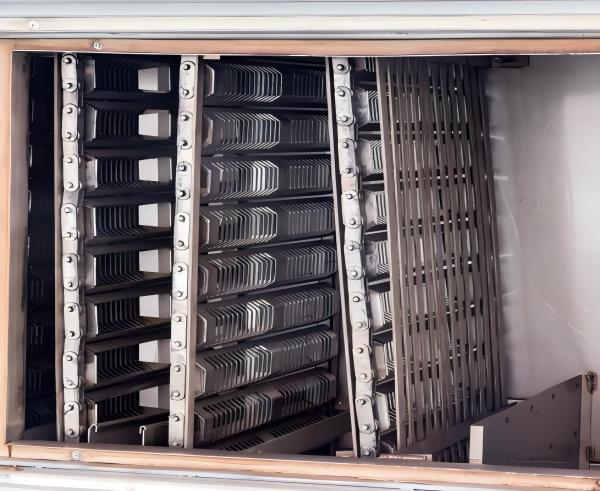

    GHC01 lacquer curing oven adopts the form of gas heating. Sprayed cans are sent to the stainless steel "C" basket of the oven chain. The lacquered cans are cured and fed to the accumulator via roller chain and subsequently to the base coating.


    A. Can range: φ35-φ66mm

    B. Can length: ≤270mm

    C. Production speed: 80-120 cans/min

    D. Motor power: 7KW

    E. Working temperature: 200℃-280℃

    F. Dimensions: 11000*1800*3980mm

    G. Weight: about 13500KG


    A. SIEMENS PLC controls the temperature automatically. SICO burn-up device can regulate the fire according to the internal temperature of the oven. FUJI temperature controller ensures the temperature within plus or minus 2 ℃ of setting temperature.

    B. The machine adopts hot air circle system (heating box, fan and air channel). The box employs convective mixing technology which can ensure uniform heating. The internal temperature of oven is uniform due to the circle of the hot air. Thus the effect of annealing is excellent and the products are of high quality.

    C. The machine is safe, convenient and energy-efficient. It can not only use natural gas, but also liquefied petroleum gas. Using gas for heating is both effective and economical.

    D. The oven chamber adopts suspended structure which is convenient for maintenance and makes the conveying basket more stable during the operation of the furnace cavity, reducing the incidents of dropping and crushing cans, so as to improve the qualified rate of products.
