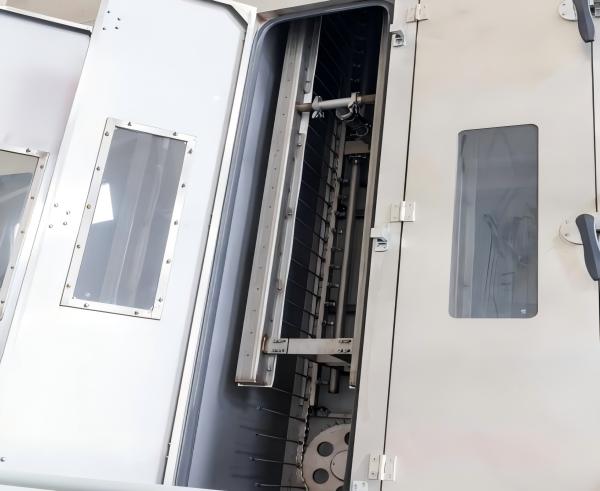

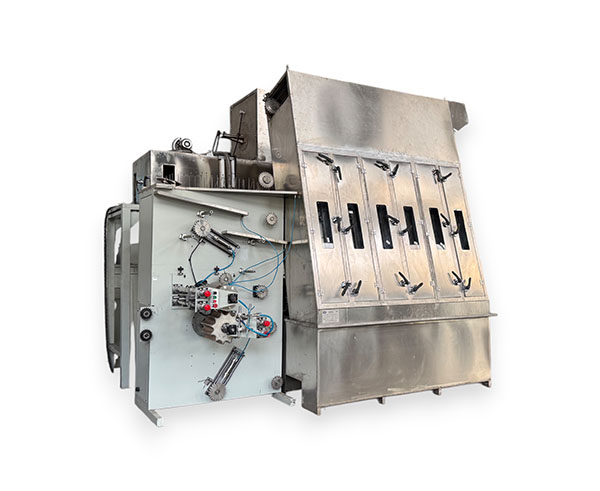

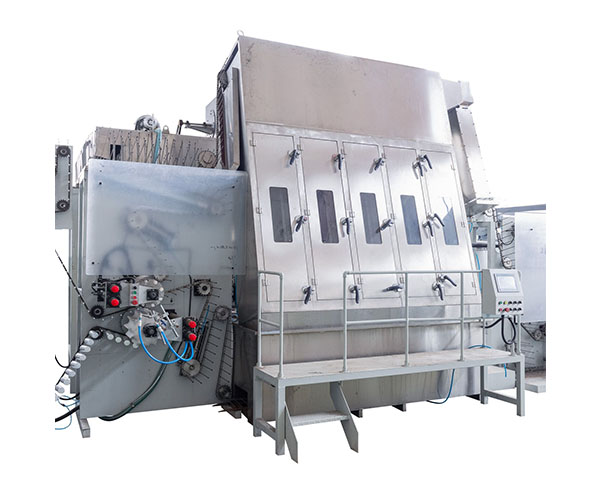

QXC02 Washing Machine (Spray)

    QXC02 washing machine is also called can washer. It is an aluminum can automatic cleaning machine of new generation. Automatic can washing is a necessary procedure in aluminum can production line. It is the specialized supporting equipment for aluminum can production line. The equipment is fully automatic, where the loading and unloading is fully automatic.

Inquire Now
  • Application and operating principle
  • Main technical parameters
  • Main features

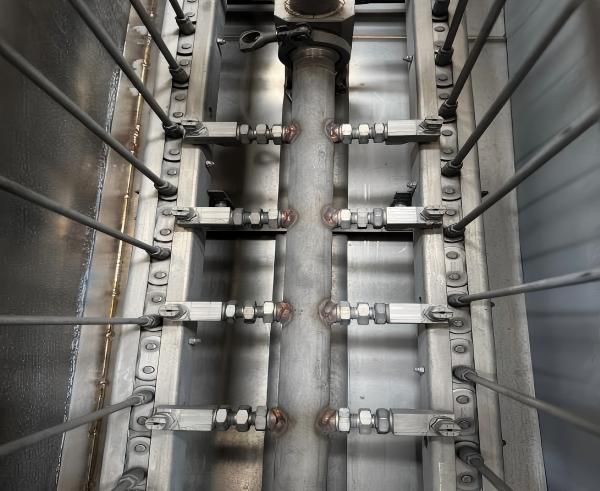

    QXC02 automatic can washer is a five-door spray cleaning machine. Each spray is controlled by an independent pump. The first and second washing are cleaning agent washing. The third, fourth and fifth are rinsing. The last is water washing, so as to realize the complete cleaning effect. Finally, the aluminum cans are turned from horizontal to vertical, and sent into the drying oven at the top of the cleaning tank. The cycled hot air completely dries cans. The machine can work alone or operate with other machines.


    A. Can diameter range: φ22mm-φ45mm,φ35mm-φ55mm, φ45mm-φ66mm

    B. Can length range: ≤250mm

    C. Production speed: 100-120cans/min

    D. Main motor power: 5.5KW+1.5KW, total power: 101.54KW

    E. Dimensions: 6300*2946*3850mm

    F. Net weight: 8000KG

    G. Drying temperature: 150℃~200℃


    A. Spray-type washing that ensures quick and thorough cleaning process.

    B. The water tank and frame of the machine adopt stainless steel of strong corrosion resistance. The temperature can be regulated according to washing effect.

    C. The drying oven comes with hot air circulating arrangement which ensure uniform heating. The internal temperature is controlled by temperature controller and can be set freely according to seasons and temperature change.

    D. Five independent tanks can recycle water and thus save water. Dirty water can overflow automatically.
