HXC02 Drying Oven (Gas)
  • HXC02 Drying Oven (Gas)
  • HXC02 Drying Oven (Gas)
HXC02 Drying Oven (Gas) HXC02 Drying Oven (Gas)

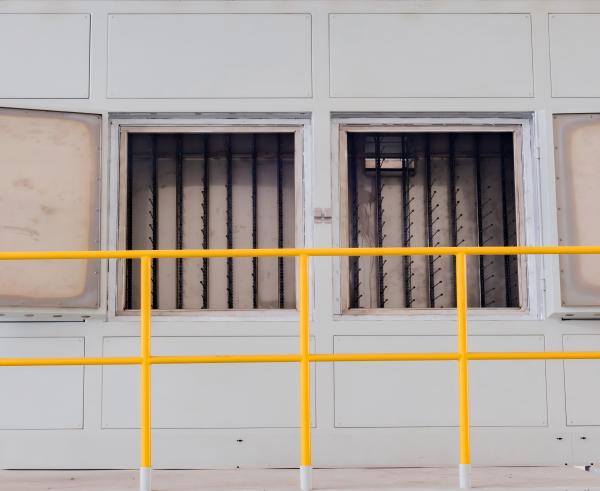

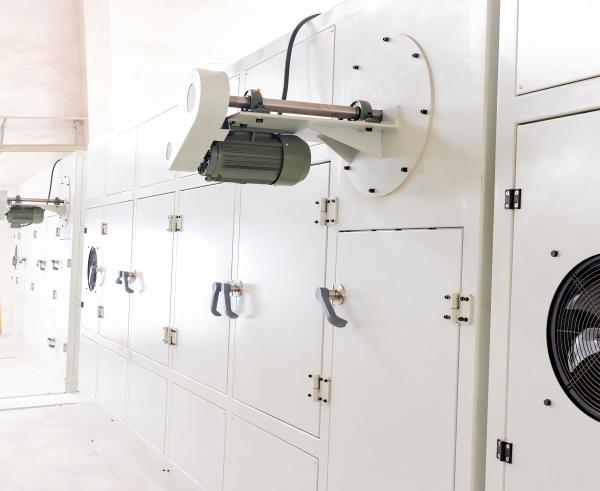

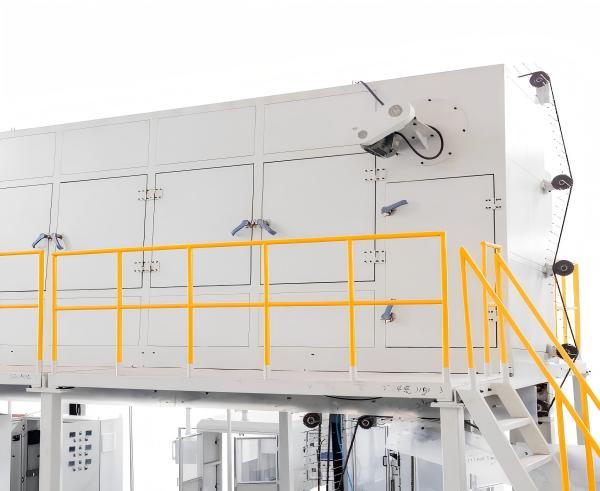

HXC02 Drying Oven (Gas)

    HXC02 drying oven is supporting equipment for aluminum can production line. It is used to dry the cans after base coat, print and varnish.


Inquire Now
  • Application and operating principle
  • Main technical parameters
  • Main features

    The drying oven adopts imported burner that can convert natural gas or liquefied petroleum gas into thermal energy. The heat created by burner turns into hot air through the exchange equipment. The high pressure fan blows the air into the wind channel and oven to form a hot wind cycle. The heat exchange is of high efficiency and due to the convective mixing technology, the temperature is very uniform.


    A. Can range: φ35-φ66mm

    B. Can length: ≤250mm

    C. Production speed: 120 cans/min

    D. Burning power: 200000Kcal/h

    E. Working temperature: 150℃-250℃

    F. Dimensions: 5620*2400*950mm

    G. Weight: about 5000KG


    A. SIEMENS PLC controls the temperature automatically. SICO burn-up device can regulate the fire according to the internal temperature of the oven. FUJI temperature controller ensures the temperature within plus or minus 2 ℃ of setting temperature.

    B. The machine adopts hot air cycle system (heating box, fan and channel) which ensures uniform temperature in furnace and high quality of products.

    C. The machine is safe, convenient and energy-efficient. It can not only use natural gas, but also liquefied petroleum gas. Using gas for heating is both effective and economical.
