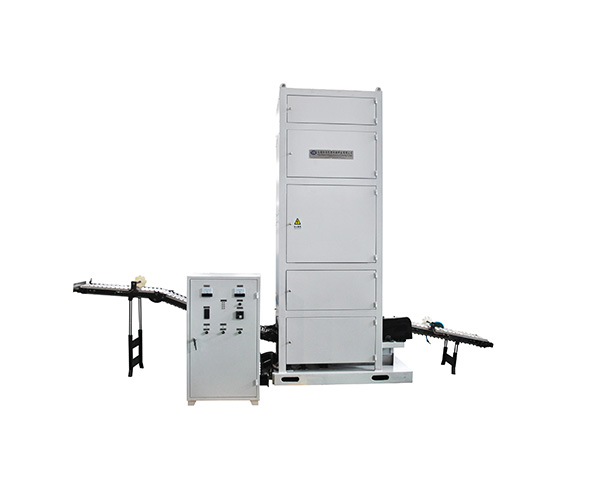

GHD01 Lacquer Curing Oven
  • GHD01 Lacquer Curing Oven
  • GHD01 Lacquer Curing Oven
GHD01 Lacquer Curing Oven GHD01 Lacquer Curing Oven

GHD01 Lacquer Curing Oven

    GHD01 lacquer curing oven which is used to polymerize the lacquer is the supporting equipment for aluminum collapsible tube production line. It is the necessary equipment for all production lines with internal lacquering machines. The machine is equipped with a single drive motor. It can operate synchronously with the equipment before and after or operate separately.

Inquire Now
  • Application and operating principle
  • Main technical parameters
  • Main features

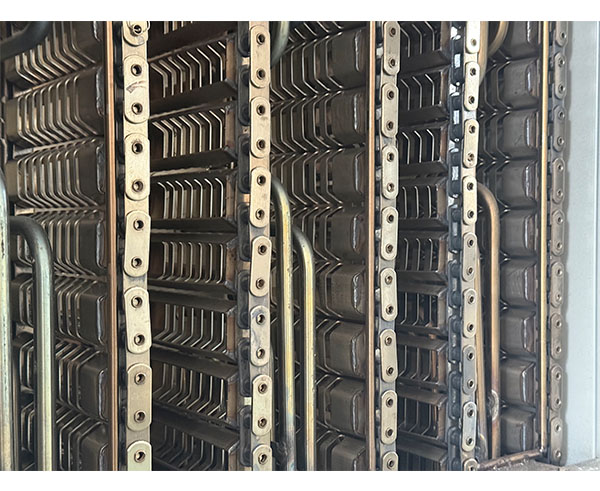

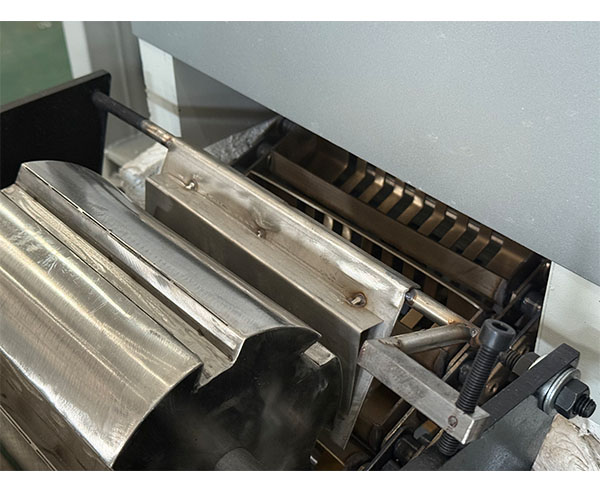

    Sprayed tubes are sent to the stainless steel "C" basket of the oven fitted on conveyor chain, which passes through a heated tunnel. Hot air circulation inside the tunnel cures the lacquer to chemically stable film layer.


    A. Tube range: φ12.7-φ25mm or φ25-φ38mm

    B. Production speed: 60 tubes/min

    C. Motor power: 0.75kw

    D. Dimensions (including conveyer chain): 5132*1300*3040mm

    E. Weight: 1950KG

    F. Working temperature: 200-500℃

    G. Heating time: 240s

    H. Conveyer bowl:“C”basket

    I. Electric heating power: 4KW*8


    A. Electric heating components adopt stainless steel thermal resistance. Heating elements are easy to detach and replace.

    B. FUJI temperature controller ensures the temperature within plus or minus 2 ℃ of setting temperature.

    C. The tube conveying chain adopts continuously variable, which can make the equipment and the last device have the sane production speed. The sprayer machine provides main driving force for the chain.

    D. The oven chamber adopts suspended structure which is convenient for maintenance and makes the conveying basket more stable during the operation of the furnace cavity, reducing the incidents of dropping and crushing tubes, so as to improve the qualified rate of products.

    E. The machine is equipped with a single driving motor. It can operate synchronously with the equipment before and after, or operate separately.
