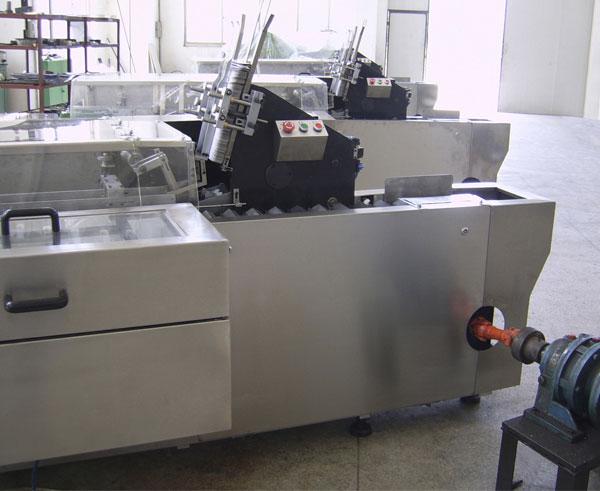

BZ01 Automatic Box Packing Machine
  • BZ01 Automatic Box Packing Machine
  • BZ01 Automatic Box Packing Machine
BZ01 Automatic Box Packing Machine BZ01 Automatic Box Packing Machine

BZ01 Automatic Box Packing Machine

    BZ01 automatic box packing machine can pack single regular-shaped product into box through a series of mechanical actions.

Inquire Now
  • Application and operating principle
  • Main technical parameters
  • Main features

    The whole process can be divided into four sections: releasing from stack one by one, opening, inserting and closing boxes. A suction cup absorbs single box from stack, moves down to the boxing line. The guide rail locating device fixes the box. Then the pushing board opens the box while two movable locating devices rise underneath, get the box’s sides close from front and back, make the box open at right angles and move into the filling area. After filling the product in to the box, the machine folds the sides of box with the help of side rails, for closing the cover. The push plate pushes the cover to bend, and insert it to make the product tightly packed

    The equipment can work alone or form a production line with other machines.


    A. Standard of product: 110*22*22-220*50*50mm

    B. Production speed: ≤120 boxes/min

    C. Dimensions of machine: 3800*1100*1400mm

    D. Weight: 1200KG

    E. Intake pressure: 4-10kg/cm2


    A. No boxes, no packing. The empty box is rejected automatically.

    B. The machine applies to different specifications.

    C. It adopts SIEMENS PLC to control speed and frequency.

    D. It has excellent stainless steel shell which is beautiful, clean and convenient.

    E. The machine is stable and reliable in function and has high speed in production.
