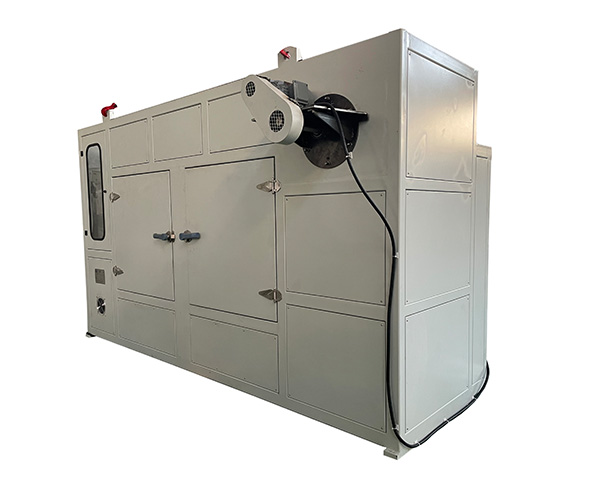

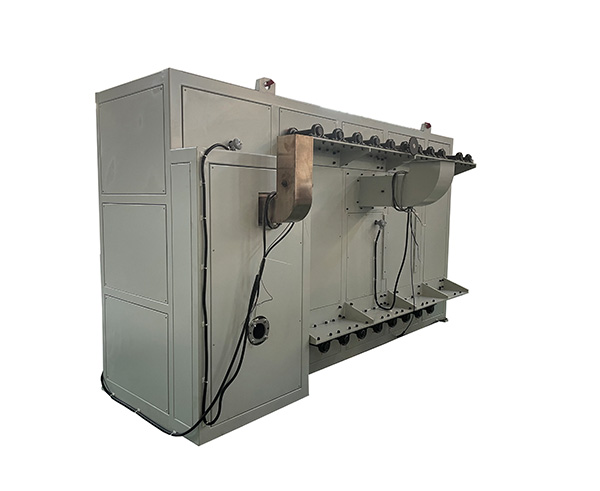

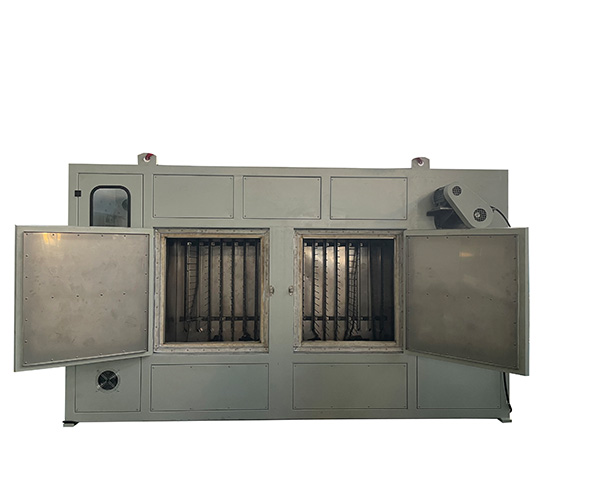

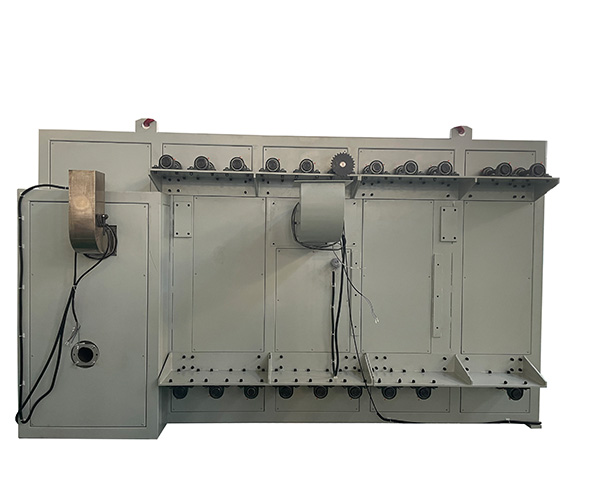

HXG02 Drying Oven (Gas)
  • HXG02 Drying Oven (Gas)
HXG02 Drying Oven (Gas)

HXG02 Drying Oven (Gas)

    HXG02 drying oven is supporting equipment for aluminum collapsible tube production line. It is used for drying tubes after base-coating and printing.


Inquire Now
  • Application and operating principle
  • Main technical parameters
  • Main features

    The drying oven adopts imported burner that can convert natural gas or liquefied petroleum gas into thermal energy. The heat created by burner turns into hot air through the exchange equipment. The high pressure fan blows the air into the wind channel and oven to form a hot wind cycle. The heat exchange is of high efficiency and due to the convective mixing technology, the temperature is very uniform.


    A. Tube range: φ16-φ25mm or φ25-φ35mm

    B. Tube length: ≤200mm

    C. Production speed: 120 tubes/min

    D. Burning power: 4KW/set

    E. Burning power/temperature: 10-116KW/150℃~250℃

    F. Dimensions: 4550*1800*2200mm

    G. Weight: about 4000KG


    A. SIEMENS PLC controls the temperature automatically. SICO burn-up device can regulate the fire according to the internal temperature of the oven.

    B. The machine adopts hot air cycle system which is highly efficient and clean.

    C. The machine is safe, convenient and energy-efficient. It can not only use natural gas, but also liquefied petroleum gas. Using gas for heating is both effective and economical.
