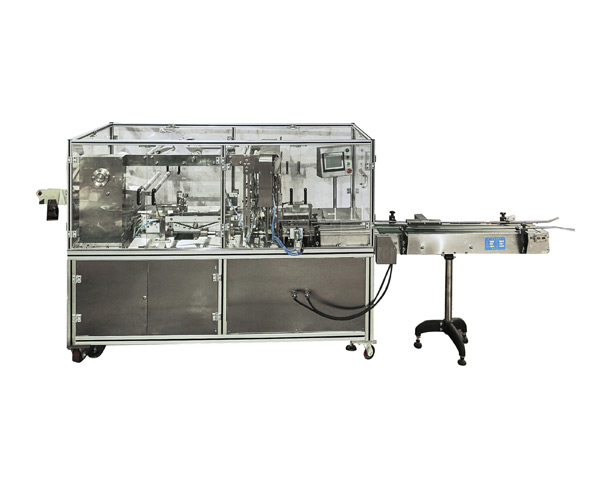

The main procedure includes paper fold and bag closure. The machine is mainly used to pack box-packed goods. According to client’s demand, the packing form can be horizontal packing or vertical packing. The folding parts adopt heat-seal method to realize adhesion. After adhesion, products are tight, artistic and damp-proof. After the adhesion of film and tear tape, the product is packed. This design is convenient for customers to seal off finished goods.
A. Packing speed: 15-26boxes(pieces)/min
B. Packing size range:
Length (L): 100-400mm
Width (W): 45-240mm
Height (H): 20-115mm
C. Packing material:
Heat-seal cellophane
OPP( BOPP) film, which has two sides coating.
The film thickness is 0.022-0.03mm.
The inner diameter of coil stock core is 76mm.
The width of tear tape is 1.2-3mm.
D. Power:
Voltage: 380V
Frequency: 50Hz
Total electric heating power: 4.5KW
Total motor power: 0.45KW
Main gas circuit working pressure: 0.6-0.7Mpa
E. Boundary dimension:
Host machine dimension (L *W*H) 2180*1000*1500mm
Transport platform dimension (L*W*H) 1600*270*770mm
F. Machine weight: about 800Kg
A. Its structure is compact and reasonable. The function is advanced and stable. Its operation is very easy.
B. The mold can be changed with simple tools. It runs and detects automatically. The operating condition can be observed directly. It has the function of accidental shutdown and alarm display.
C. High universality and flexibility.
D. Mature man-machine defensive function.
