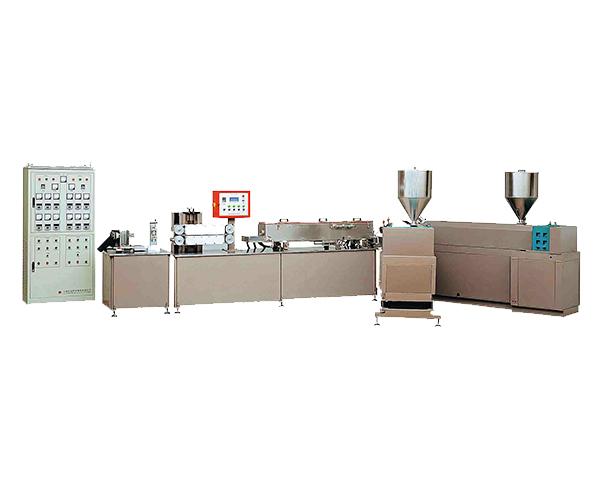

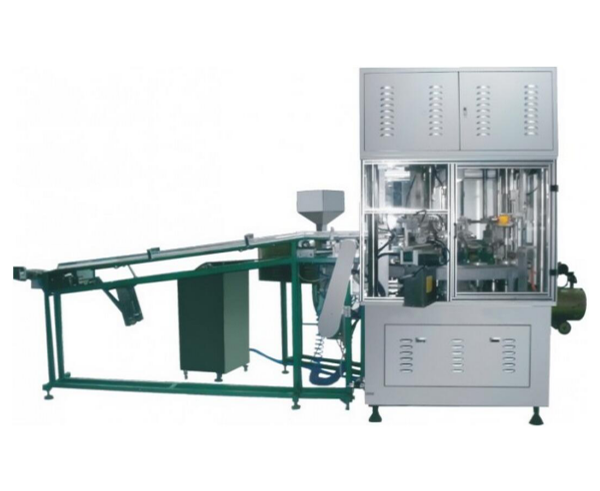

Laminate Tube Production Line
  • Laminate Tube Production Line
  • Laminate Tube Production Line
  • Laminate Tube Production Line
Laminate Tube Production Line Laminate Tube Production Line Laminate Tube Production Line

Laminate Tube Production Line

    Applications

    Laminate tube production line is a technology energy saving product with high efficiency, reliability,flexibility.It is one of the best choices for manufacturing, by making 110 pieces tube per minute and need 6m2 floor spaces only, quickly moulds changing (about 40 to 60 minutes).

Inquire Now
  • Features & Parameters

    Laminate tubes line has closed cooling system, so normal running only by power supply and air compressor. The lowest power consumption and systematic unique design keep the lowest cost of operation and maintenance. Advanced welding technologies without hot-air preheating ensure the best welding quality of tube body and shoulder at a highest speed production. It adopts the HMI(Human Machine interface) controlling system, so machine running, testing and mould changing become more convenient. Given the superiorities in technical performance, price and cost of operation and maintenance, it increases the profit margin and makes manufacturers more competitive in the market.


    Tube dimension

    Diameter

    Φ16mm-40mm

    Length

    40mm-180mm

    Capacity

    Max.speed

    110pcs/min

    Machine dimension

    Tube making part

    4000mm×800mm×1680mm

    Shoulder welding part

    1660mm×1550mm×1680mm

    Weight

    200kg



    Power requirements

    Total rate power

    9KVA
    3×380V~50HZ

    Power consumption

    4KW

    Air consumption

    Air pressure

    0.6Mpa

    Air flowing

    About 4Nm³/h

    Quantity

    100μm Water analysis necessary
