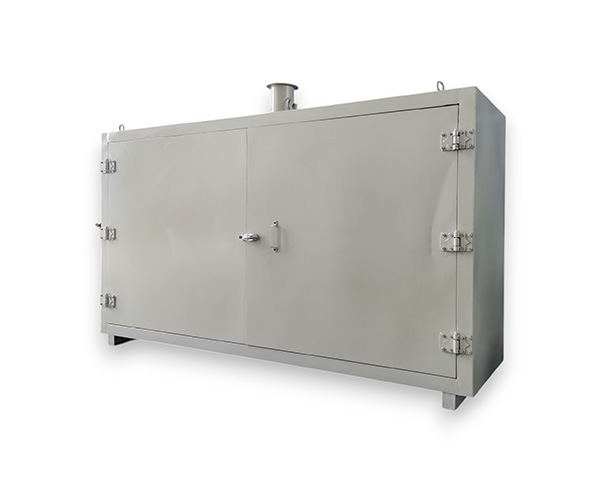

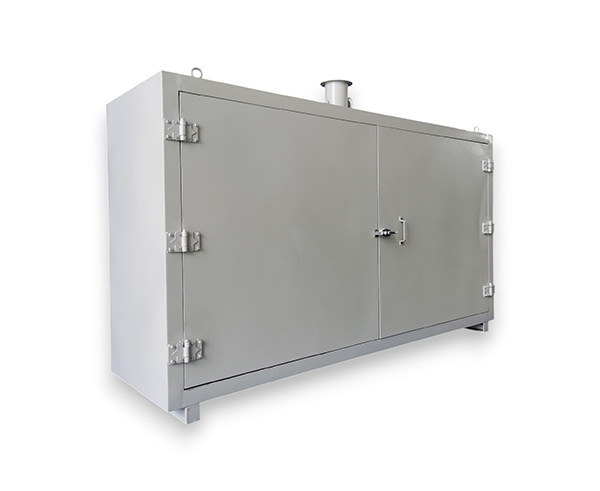

HXG01 Drying Oven
  • HXG01 Drying Oven
HXG01 Drying Oven

HXG01 Drying Oven

    HXG01 drying oven is supporting equipment for aluminum collapsible tube production line. It is used for drying tubes after base-coating and printing.

Inquire Now
  • Application and operating principle
  • Main technical parameters
  • Main features

    HXG01 drying oven is supporting equipment for aluminum collapsible tube production line. It is used for drying tubes after base-coating and printing.

    A. Tube range: φ16-φ25mm or φ25-φ35mm

    B. Tube length: ≤200mm

    C. Production speed: 100-120 tubes/min

    D. Burning power: 36KW

    E. Working temperature: 150℃~250℃

    F. Dimensions: 4000*2200*2500mm

    G. Weight: about 3200KG


    A. The control of internal temperature employs the design of automatic temperature control. FUJI temperature controller ensures the temperature within plus or minus 2 ℃ of setting temperature.

    B. The electric heating components adopt stainless steel thermal resistance and have features of uniform heating and easy operation. Heating components are easy to detach and replace.

    C. The machine adopts hot air circulation system (heating box, fan and air channel).

    D. Heating components are easy to detach and replace. When some thermal resistance is broken, it can be replaced quickly.
