NMD01 Capping Machine
  • NMD01 Capping Machine
  • NMD01 Capping Machine
  • NMD01 Capping Machine
  • NMD01 Capping Machine
  • NMD01 Capping Machine
  • NMD01 Capping Machine
NMD01 Capping Machine NMD01 Capping Machine NMD01 Capping Machine NMD01 Capping Machine NMD01 Capping Machine NMD01 Capping Machine

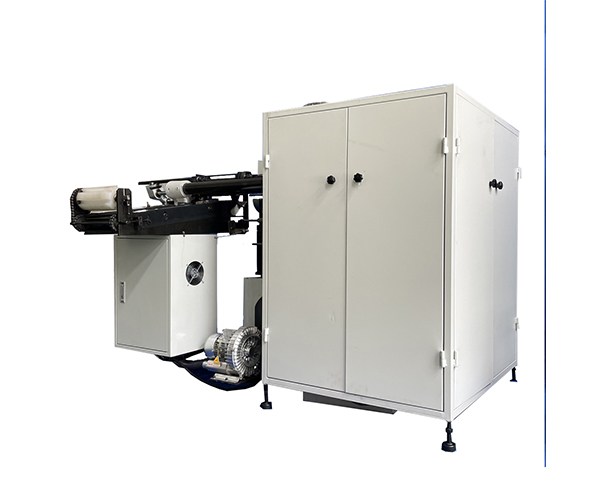

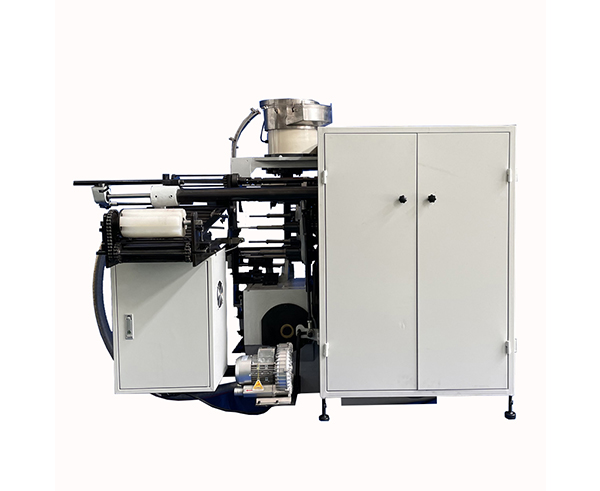

NMD01 Capping Machine

    NMD01 is the capping machine for printed and dried aluminum tubes. Tubes are sent to capping machine where capping manipulator spin cap over the nozzle.



Inquire Now
  • Application and operating principle
  • Main technical parameters
  • Main features

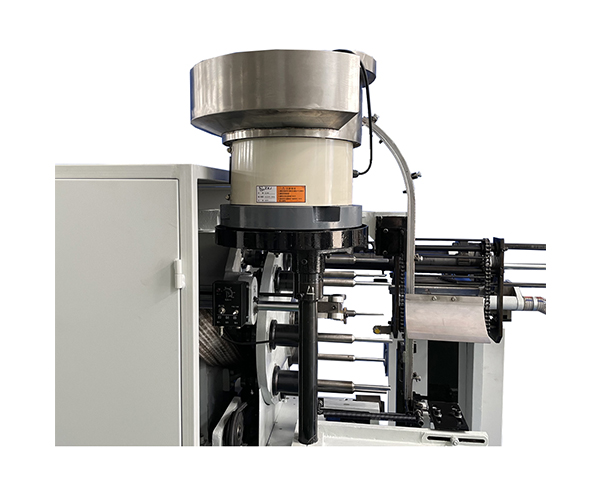

    Tubes move into the tube slot and are inserted over mandrel by push rod. The detector switch detects the aluminum tubes on the mandrel prior to the capping station, and if tube is present, the jaw opens, plastic cap drops into the jaw and the jaw closes to hold the cap. At the same time, the jaw with the cap moves towards mandrel while mandrel rotates in the opposite direction, and the cap is screwed on tubes nozzle. The unloading plate pushes tubes into the discharge slot.



    A. Tube range: φ11mm-φ38mm

    B. Tube length: ≤210mm

    C. Production speed: ≤60 tubes/min

    D. Motor power: 2.2KW

    E. Dimensions: 2074*1210*1525mm

    F. Weight: about 1800KG


    A. Caps are dropped fast, steadily and automatically.

    B. Tightness is uniform and can be regulated.

    C. Automatic detection. No tubes, no capping.

    D. SIEMENS PLC controls speed and frequency.
