YSD02 5-Color Printing Machine
  • YSD02 5-Color Printing Machine
  • YSD02 5-Color Printing Machine
  • YSD02 5-Color Printing Machine
  • YSD02 5-Color Printing Machine
  • YSD02 5-Color Printing Machine
  • YSD02 5-Color Printing Machine
YSD02 5-Color Printing Machine YSD02 5-Color Printing Machine YSD02 5-Color Printing Machine YSD02 5-Color Printing Machine YSD02 5-Color Printing Machine YSD02 5-Color Printing Machine

YSD02 5-Color Printing Machine

    YSD02 5-color printing machine is suitable for printing the surface of metal tubes like aluminum tubes and cans. It can realize polychrome printing of patterns in five colors.


Inquire Now
  • Application and operating principle
  • Main technical parameters
  • Main features

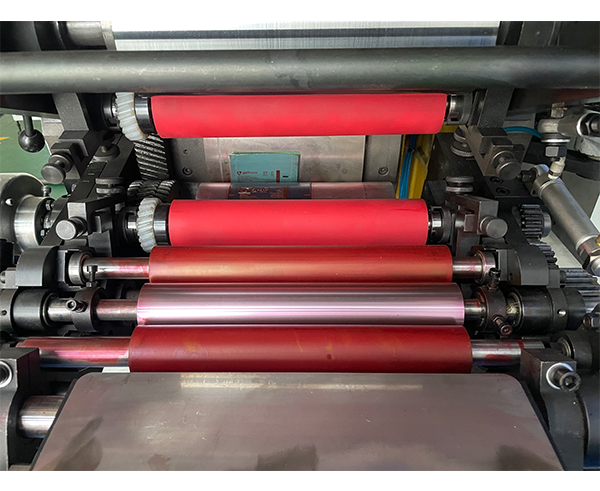

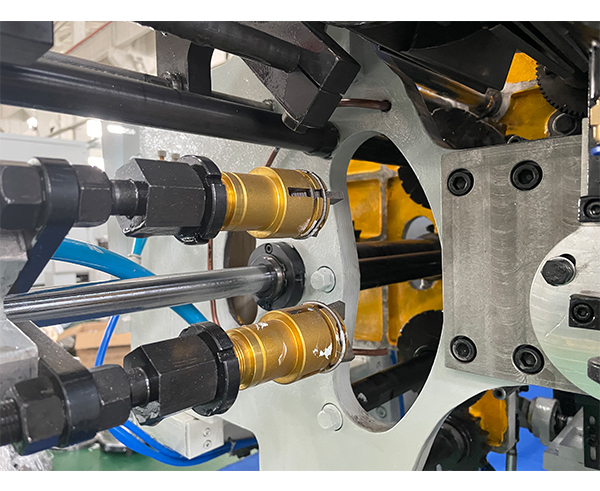

    Base coated and dried germ tubes move into the tube slot. Tubes are inserted with printing mandrel by push rod. The ink is transferred to printing plate through ink fountain, ink roller, middle roller, and oscillating roller. The printing plate transfers the pattern to the blanket cylinder with appropriate pressure and prints tubes with patterns. The manipulator takes tubes away from the mandrel and sends them to the transferring chain towards the drying oven.


    The machine adopts PLC and the text display can show the instant information of speed and production. The machine has self-inspection system. If tubes are not well inserted, the machine would stop working. No tubes, no printing. Printing mandrel rotates automatically and can change frequency and speed. The printing units adopt Branch+ R plate structure which is easy for changing specifications. The ink volume of each printing unit can be set separately.


    The machine is easy to operate and with high printing accuracy. It adopts Ferguson indexer. Main units like 8 mandrel disc and cam are processed by CNC equipment, which ensures accurate and reliable performance.


    A. Tube range: φ11-φ38mm

    B. Production speed: ≤60tubes/min

    C. Motor power: 5.5KW

    D. Dimensions: 2100*1530*1600mm

    E. Weight: 3800KG


    A. PLC controls the frequency and speed of machine.

    B. Production speed can be displayed automatically.

    C. Inking twice to ensure precise color processing and high accuracy of printing.

    D. No tubes, no printing. If the tube is not well inserted, the machine would stop automatically.

    E. Tubes are taken up and down automatically.
