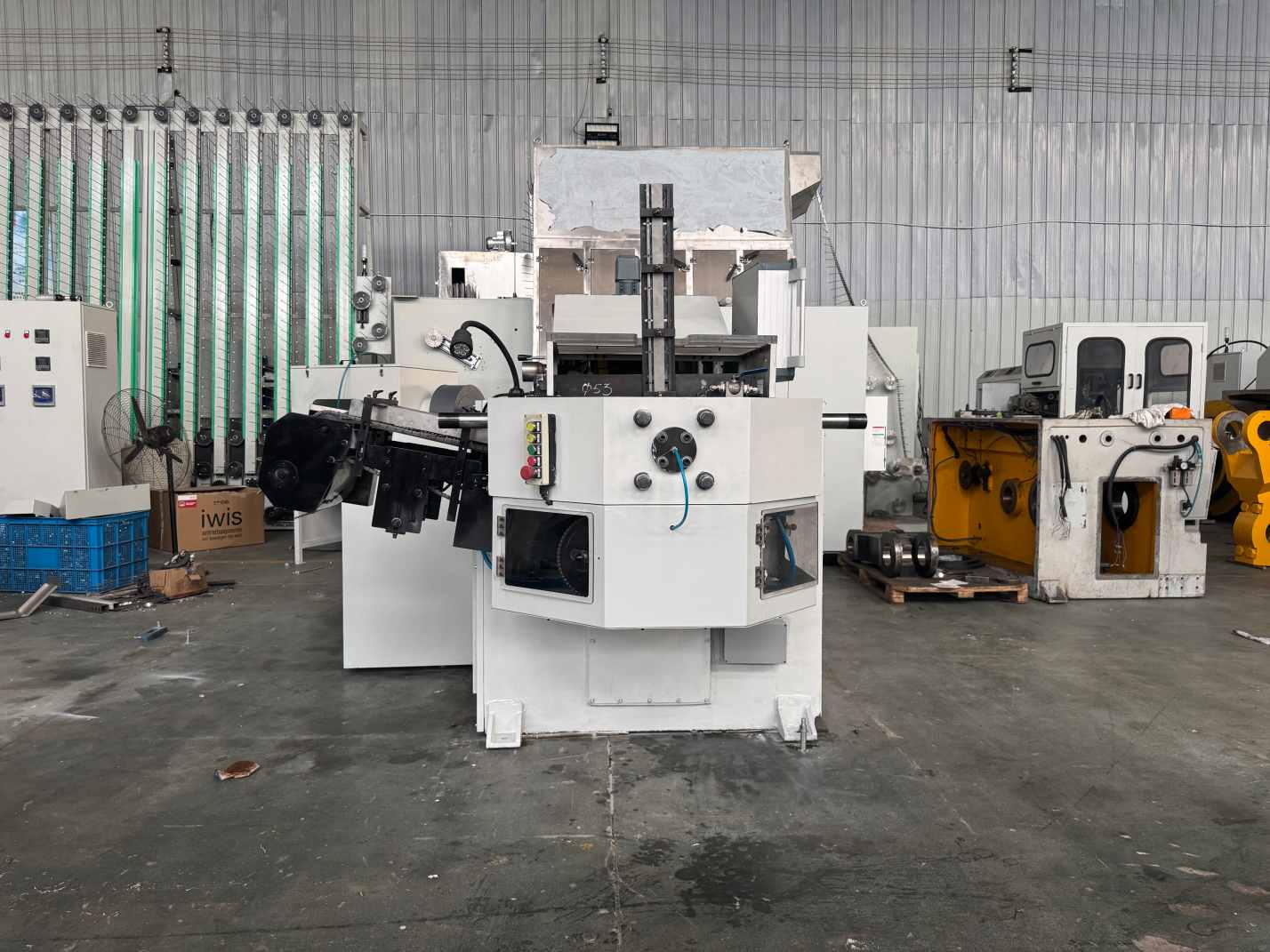

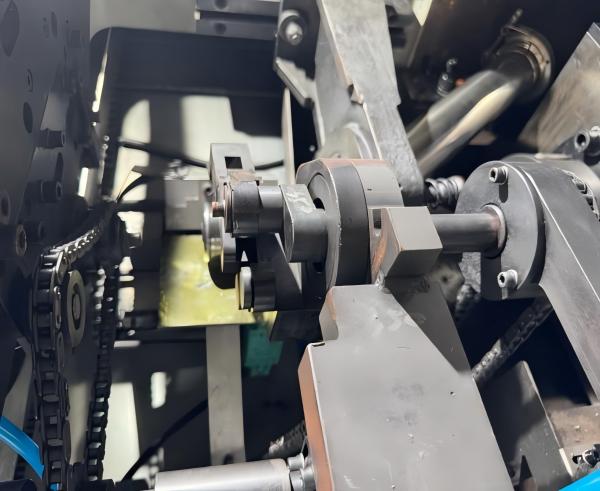

The LJC01 extrusion press machine developed by our company, is a high speed aluminum extrusion device of new generation. This equipment comes with slat chain lift conveyors which automatically arrange the aluminum slugs in order and send them to the laying-off rail. The machine manipulator sends the slugs precisely into the punch cavity. Under the action of the crank-shaft connecting rod, swing rod and sliding block, the aluminum slugs are extruded in desired shape and size.
The clearance between body of punch and die controls pipe thickness. Through the annular slot between the carbide ring and tip of punch, the slugs are pressed and turned into germ tubes, the extruded part is automatically unloaded to the out feed conveyor which transfers the product to next operation stage.
A. Can diameter range: φ35mm-φ59mm
B. Can length range: 80-250mm
C. Production speed: ≤120cans/min
D. Main motor power: 37KW, Total power: 37.28KW
E. Intake pressure: ≥0.4Mpa
F. Slide stroke: 350mm
G. Net weight: 11000 KG
H. Dimensions: 3195*1558*1585mm(conveyer belt and vibration hopper not included)
A. The complete machine is controlled with SIEMENS PLC, which ensures smooth control and synchronize the operation with safety. Fail safe lubrication, automatic detection of job sticking to die and punch, are added features.
B. The machine adopts whole cast steel structure (one-time casting) and has excellent rigidity and impact resistance. The body of the lathe is processed by large processing center. Mandrel and some other units are processed by CNC equipment, reaching high precision degree.
C. The equipment adopts electricity chain operation and full closed structure, with stable function and low noise. If the can does not perform well, the machine would stop working automatically.
D. The seat of the tip of punch adopts the form of double inclined plane with accurate location. Punch base and connecting rod employ adjustable structure, which can eliminate the gap caused by the wear and tear of long term operation and ensure long-term high precision of equipment.
E. The key parts use high quality bronze alloy to reduce friction coefficient, increase wear resistance and prolong working life.
F. The machine employs whole closed lathe body design, which can avoid the dropping of lubricant onto the floor.
G. Easy operation and maintenance. The machine meets the concept of energy conservation and environmental protection.
